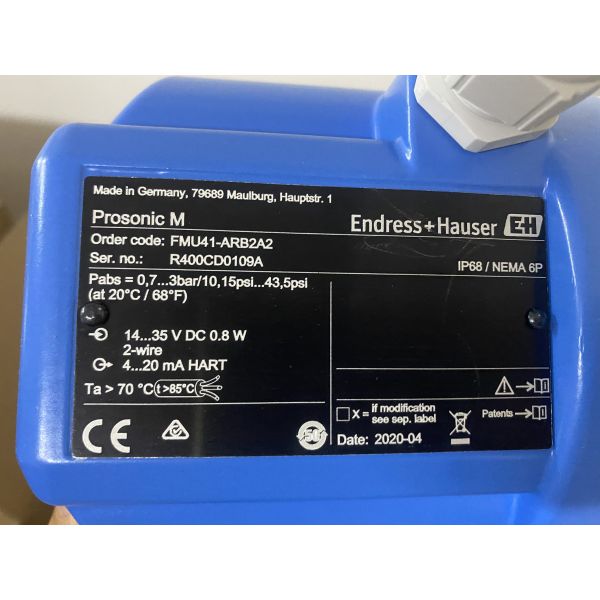

E+H FMU41-ARB2A2 Prosonic M Ultrasonic Level Transmitter
Product Details:
Manufacturer : Endress+Hauser
Product No. :FMU41-ARB2A2
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The E+H FMU41-ARB2A2 belongs to Endress+Hauser Prosonic M integrated ultrasonic transmitter lineup, adopting Time-of-Flight ultrasonic measuring principle to achieve continuous non-contact level detection for liquids, paste, sludge and granular bulk solids; meanwhile it supports open-channel and weir flow calculation via built-in 32-point programmable linear correction algorithm. Equipped with factory-configured G2 ISO228 threaded connection, PVDF corrosion-resistant wetted component and standard 4~20mA+HART communication protocol, this model is built with coated aluminum housing rated IP68 protection and 4-line multilingual local display with real-time echo envelope diagnostic curve for on-site troubleshooting. The built-in ambient temperature sensor automatically compensates ultrasonic sound velocity drift caused by environmental temperature variation to stabilize measuring precision, widely installed in municipal water treatment, fine chemical, food processing and bulk material storage industries. No mechanical contact with measured medium eliminates abrasion damage and periodic component replacement maintenance.
Detail:
| Parameter Item | Standard Technical Value |
| Model Code | FMU41-ARB2A2 (E+H Prosonic M Series) |
| Measuring Principle | Ultrasonic Time-of-Flight (ToF) |
| Max Measuring Range | Liquid:8 m / Bulk Solid:3.5 m |
| Measuring Accuracy | ±2 mm or ±0.2% of full calibrated range |
| Dead Blind Zone | 0.35 m fixed blind distance |
| Standard Output Signal | 4~20mA DC + HART protocol |
| Power Supply Mode | 2-wire: DC10.5~32V; Optional 4-wire: DC14~36V / AC90~253V 50/60Hz |
| Linear Correction Function | Up to 32 user-programmable correction points |
| Local Display | 4-line multi-language digital display + real-time echo envelope diagnostic curve |
| Optional Extra Communication | PROFIBUS PA, FOUNDATION Fieldbus |
| Spec Category | Detailed Technical Parameter |
| Wetted Probe Material | PVDF (acid & alkali corrosion resistant) |
| Transmitter Housing Material | Anti-corrosion coated cast aluminum |
| Standard Process Connection | ISO228 G2 female thread mounting |
| Process Medium Temperature | -40°C ~ +80°C (-40°F ~ 176°F) |
| Absolute Working Process Pressure | 0.7 bar ~ 3 bar abs (10~44 PSI) |
| Ingress Protection Rating | IP68 / NEMA 6P dust & waterproof grade |
| Ambient Operating Temperature | -40°C ~ +80°C |
| Global Industrial Certifications | ATEX, FM, CSA, NEPSI, TIIS, INMETRO safety approvals |
| Approx Net Weight | 2.6 kg |
