Phoenix Contact EMG 90-DIO 32M | 32-Channel Common Anode Diode Block Module
Product Details:
Manufacturer : Phoenix Contact
Product No. : EMG 90-DIO 32M
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact EMG 90-DIO 32M is a high-density industrial diode block module designed for surge voltage suppression and electrical signal decoupling in industrial control systems. Featuring 32 integrated 1N4007 diodes with a common anode configuration, this DIN-rail mountable module delivers reliable protection for inductive loads and ensures stable signal transmission in fault reporting and monitoring circuits.
Engineered for universal industrial compatibility, the EMG 90-DIO 32M supports a maximum operating voltage of 250 V AC and provides robust surge suppression with a 1300 V peak reverse voltage rating per diode. Its optimized current handling capacity enables stable operation under single-load and simultaneous multi-load conditions, effectively eliminating voltage spikes and electromagnetic interference generated by inductive components such as relays, contactors, and solenoid valves.
Detail:
| Technical Item | Parameter Value |
| Product Model | EMG 90-DIO 32M |
| Manufacturer | Phoenix Contact |
| Manufacturer Item Code | 2954934 |
| Module Type | 32-Channel Common Anode Diode Block |
| Diode Model | 1N4007 |
| Max Operating Voltage (Umax) | 250 V AC |
| Peak Reverse Voltage per Diode | 1300 V |
| Reverse Current per Diode | ≤ 5 µA |
| Conducting State Voltage | Approx. 0.8 V |
| Single-Load Conducting Current | 0.7 A |
| Simultaneous Multi-Load Current | 0.2 A |
| Insulation Pollution Degree | 2 |
| Core Functions | Surge voltage suppression, inductive load protection, signal decoupling |
| Physical & Environmental Item | Parameter Value |
| External Dimensions (W × H × D) | 90 mm × 75 mm × 55 mm |
| Net Weight | 165.47 g |
| Connection Method | Screw connection (M3 thread) |
| Stripping Length | 8 mm |
| Rigid Conductor Cross-Section | 0.2 mm² – 4 mm² |
| Flexible Conductor Cross-Section | 0.2 mm² – 2.5 mm² |
| AWG Wire Range | 24 AWG – 12 AWG |
| Housing Color & Material | Green (RAL 6021), industrial flame-retardant plastic |
| Mounting Type | Standard DIN rail mounting, zero-spacing row assembly |
| Operating Temperature Range | -20 °C to +50 °C |
| Storage & Transport Temperature | -40 °C to +70 °C |
| Compliance Standards | CE, EU RoHS, EN 61326, DIN EN 50178 |
| Mounting Position | Arbitrary installation orientation |
Brand
Phoenix Contact China is a subsidiary of the German Phoenix Contact Group in China. It entered China in 1993 and its headquarters is located in Nanjing. It serves as the global competitiveness center of the Phoenix Contact Group. It has subordinate companies including Phoenix Contact (China) Investment Co., LTD., Nanjing Phoenix Contact Electric Co., LTD., Phoenix Contact Asia Pacific Electric (Nanjing) Co., LTD., Phoenix Contact (Nanjing) Intelligent Manufacturing Technology Engineering Co., LTD., Phoenix Contact Asia Pacific Logistics (Nanjing) Co., LTD., and Phoenix Contact (Nanjing) New Energy Vehicle Technology Co., LTD. As a globally renowned brand in the fields of electrical connection and electronic interface, as well as industrial automation, Phoenix Contact has always put its innovative spirit into practice, closely following changes in market demand, and driven by "customer needs and industry applications". We provide customers and partners with practical and effective solutions, including specialized, refined and differentiated intelligent devices, automation systems and digital industrial solutions in areas such as industrial components and electronic technology, device connection technology, industry management and automation.
Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, , YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
Q:Which are the best-selling products?
A: Many brands of products have been supplied . For example, MTL safety barrier MTL5541, Endress Hauser RS33 , P+F safety barrier KFD2-SR2-Ex2.W,Hand Communicator TREXCHPNAWS1S
Product Tags:
|
|

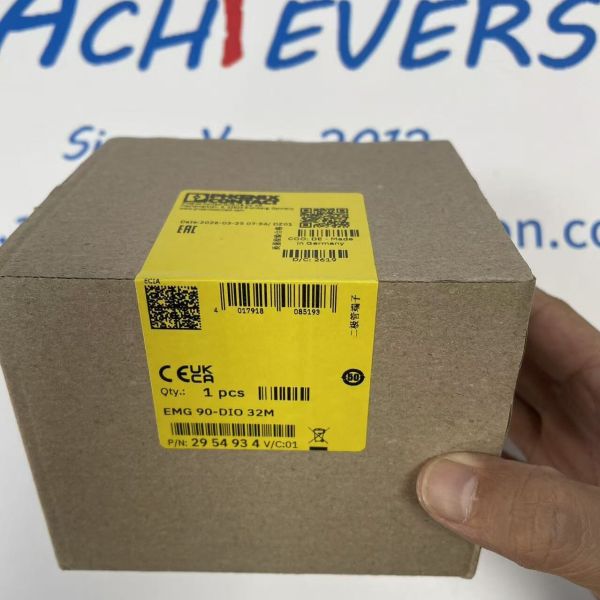

Phoenix Contact EMG 90-DIO 32M 32-Channel Common Anode Diode Block Module Images
|
